● Model: J41H/Y, J61H/Y, J11H/Y
● Pattern: Straight, Angle, or Y-Pattern
● Size: 3/8”-2” , DN15-DN50
● Pressure Rating: Class150-2500LB, PN10-PN420
● Main Materials: A105(N), LF2, LF3, F11, F22, F91, F304(L), F316(L), F321, Alloy Steel, etc.

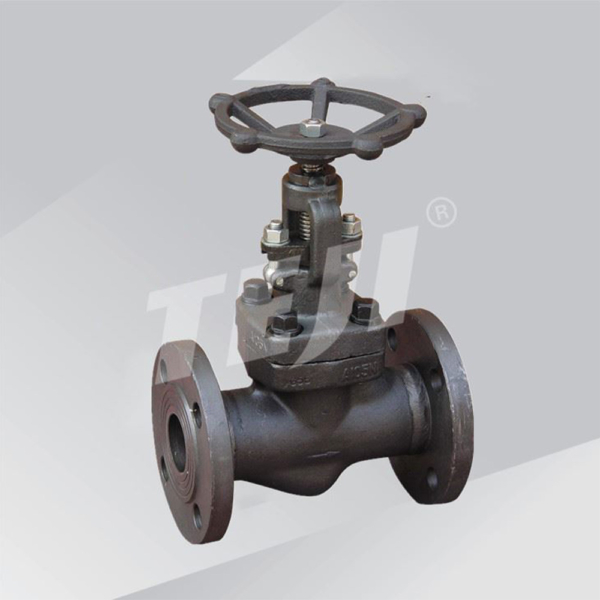

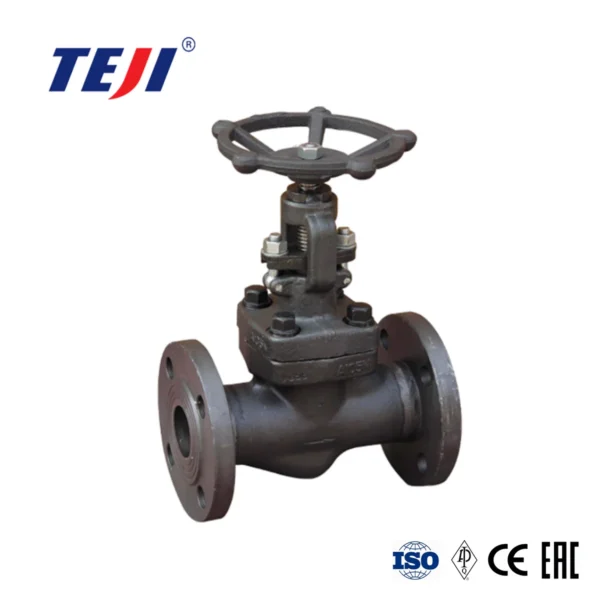

According to the channel direction, the bolted bonnet forged globe valve can be divided into straight through type globe valve, straight-flow type globe valve, angle type globe valve and plunger type globe valve. This type valve can only be suitable for fully opening and closing, not be allowed to regulating and throttling. As a shut-off and connecting equipment, bolted bonnet forged steel globe valve is used in the working conditions of petroleum, chemical industry, pharmacy, chemical fertilizer, and electric power industry.
This bolted bonnet forged globe valve is simple in structure, so it is easy to manufacture and maintain.
Small working stroke, opening and closing time is short.
Perfect sealing, friction force between sealing surfaces is small and the service life is long.
Model: J41H/Y, J61H/Y, J11H/Y
Pattern: Straight, Angle, or Y-Pattern
Size: 3/8”-2” , DN15-DN50
Pressure Rating: Class150-2500LB, PN10-PN420
Main Materials: A105(N), LF2, LF3, F11, F22, F91, F304(L), F316(L), F321, Alloy Steel, etc.
Suitable Temperature: -29℃-200℃
Design and Manufacture: NS1873, BS5160
Face-to-Face: ASME B16.10, BS1873, DIN3202, GOST3706
Ends Connection: Integral/ Welded Flange, Butt Welding, Socket Welding, Thread etc.
Inspection & Testing: BS6755, EN12266
Temperature and Rating: ANSI B16.34
Operator: Bare shaft, Manual, Worm Gear, Electric.
