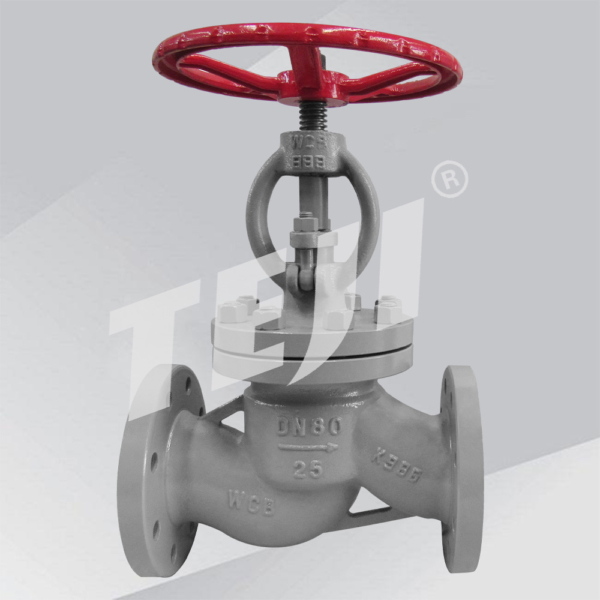

Cast steel globe valve is designed according to BS 1873 is normally used where frequent opening and closing operations are required, as well as flow controls in any desired degree. Cast steel globe valve are characterized mostly by the globe shape of your body.
● Size: 2”~24”
● Pressure Rating: Class150~2500LB
● Main Materials: WCB, WCC, WC6, LCB, CF8, CF8M, CF3, CF3M, 4A etc.
•Manufacturing acc.to API 600,BS 1873
•Straight Patterns, Angle Patterns
•OS&Y, Outside Stem & Yoke, Bolted Bonnet, Pressure Seal Bonnet
•End flange to ASME B16.5 (2” to 24”) ASME B16.47 (26” & up) Butt-Weld End Dimension ANSI/ASME B16.25
•Forged Steel, Cast Steel, Stainless Steel, Alloy Steel, Bronze, Duplex, Super Duplex Steel , etc.
•Back seat facilities provide easy replacement of gland packing under pressure.
•Extra deep stuffing box ensures fluid tightness, long packing life and low emissions.
•Suitable for thermal fluid temperature up to 425º c
•Check valves for two-port valves (entry and exit of fluid).
•Inspection & Testing: API598
– Allow partial flow control;
– Opening and closing faster than gate valves;
– The constructive characteristics of the seat-shutter assembly allow total tightness;
– Maintenance favored by easy access to the internal components of the valve, without removing it from the line.
– Do not admit flows in both directions;
– High head loss.
