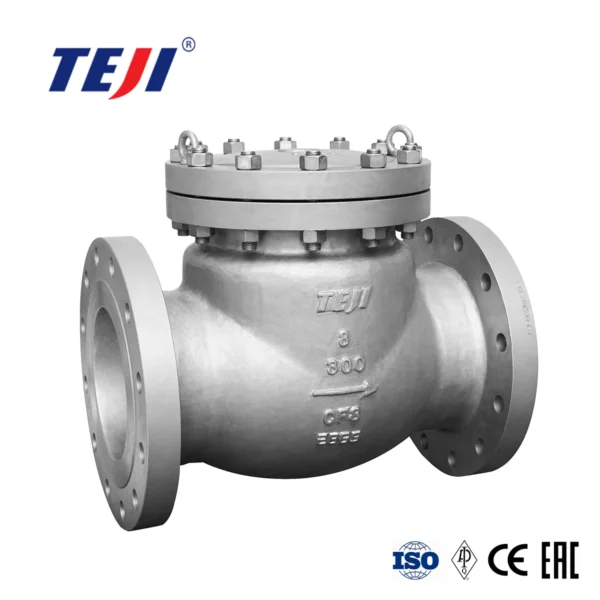

Casted Cryogenic Check Valve

You Are Here:

Casted Cryogenic Check Valve

Product Parameter Information

Cryogenic Check Valve is used in the management system of cryogenic liquid storage and transportation equipment to prevent the backflow of cryogenic medium.

Share:

Product Description

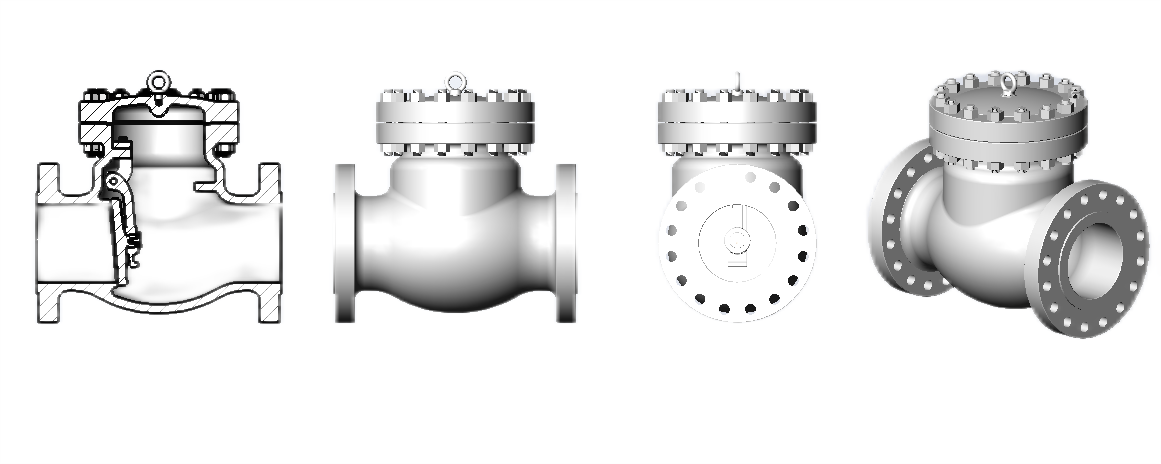

Cryogenic Check Valve is used in the management system of cryogenic liquid storage and transportation equipment to prevent the backflow of cryogenic medium. When the medium flows in the specified direction, the valve flap is opened by the force of the medium; when the medium flows backward, the valve flap is tightly closed with the sealing surface of the valve seat due to the weight of the valve flap and the opposing force of the medium. Closed to achieve the purpose of preventing the backflow of the medium. It has the characteristics of flexible switch and reliable sealing. Applicable Medium: Cryogenic temperature medium like Methane/Liquid natural gas/Hexene/Carbon dioxide/Liquid ammonia/Liquid oxygen/Liquid nitrogen/Liquid hydrogen and so on. Cast Steel Cryogenic Check Valve desc
SPECIFICATIONS:

1. Valve Size : 2 ~ 36”

2. Applicable Rating : ASME 150# ~ 600#

3. Temperature : Down to -196 ℃

4. Code & Standard : BS, ASME, ASTM

Designed by BS6364, ASME B16.34, and ASME B16.25/16.5

5. Shell & Seat Leak Test : API 598 & BS6364

6. Constructions:

End Connection : Flanged, Butt-Welded or RTJ Type

Full Bore /Reduce Bore

FEATURE:

1.Low fluid resistance.

2.Can be installed horizontally and vertically.

3.Cryogenic temperature liquid nitrogen pretreatment of parts.

4.Bolted bonnet, welded bonnet, pressure self-tightening bonnet.

MATERIALS FOR MAIN PARTS:
PARTS NAME
MATERIAL
BODY Cast
Steel

ASTM A351-CF8(M)/CF3(M)
BONNET Cast
Steel

ASTM A351-CF8(M)/CF3(M)
SEAT SOFT:
PCTFE
METAL:
ASTM A276-304(L) / 316(L)-(H.F)
DISK ASTM
A351-CF8(M) / CF3(M),
A276-304(L)
/ 316(L)-(H.F)
GASKET SPIRAL
WOUND GRAPHITE

Eight Advantages of TEJI Cryogenic Valves

All metal parts are subjected to more than two deep cold treatments before finishing;

All extended valve stems (except check valves) are made of high-performance XM-19 or Inconel718 alloy materials;

All spheres are hardened and precision ground, with a surface accuracy of more than 0.2um;

All lip-seal seals are from international first-line brands;

Cryogenic

All sealing surfaces that match the lip-seal are polished with precision technology to achieve a surface accuracy of more than 0.2um;

All "TEJI" brand cryogenic valves are tested for normal temperature and low temperature performance according to international industry standards before leaving the factory, and are shipped only after they pass the test;

All seals of the extended stem packing parts adopt a unique combined structure, which can not only ensure long-term sealing performance, but also reduce the switching torque;

All valves below -101℃ (except check valves) are equipped with cooling plates to effectively ensure that the temperature at the bottom of the packing is above 0℃; at the same time, it can effectively prevent condensed water from freezing on the valve body.

Quality Assurance

IMPROVEMENTS:

  1. Set up a trained and standardized Quality Control technician Team.
  2. With our computer managements system to analyze the data, find out the weak link of management, improve the quality and efficiency, and reduce the waste in the process.
  3. Through the computer system to make information transparent to customers, customers can master the order status and product related information in real time.
  4. Advance Machines: take advanced technology and reliable equipment to ensure machining accuracy and long-term stable production capability.
