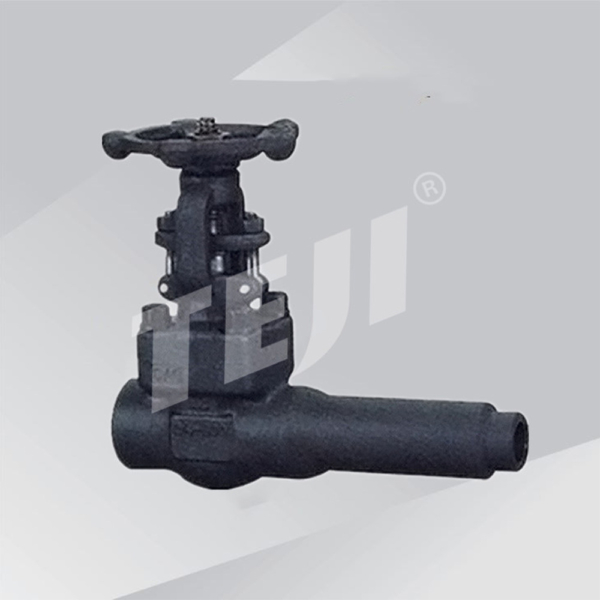

Forged Extended Body Gate Valve

You Are Here:

Forged Extended Body Gate Valve

Product Parameter Information

● 1 / 4 “to 4”
● Optional Materials
● Carbon Steel: A105, LF2
● Stainless Steel: F304, F304L, F316, F316L
● Duplex Steel: F51, F55, F53
● Alloy Steel: F1, F5, F5A, F9, F11, F22

Product Description

PRODUCT INTRODUCTION

Forge extended body gate valves are available in two bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F316L/graphite. Ring joint gasket are also available on request. The second design is the welded bonnet, with a threaded and seal welded joint. On request a full penetration strength welded joint is available.

FEATURES

The rising stem structure of forged extended body gate valve is good for easy install, clean and maintain. This product has passed low leakage test. It will automatically adjust the preload gland packing, so there will be no energy loss. It is resistant to corrosion and impact.

APPLICATION CRITERIA

Design: API 602/ASME 16.34/BS 5352
Pressure Test: API 598
Tag: MSS SP25
SW connector standard: ASME B16.11
Threaded connector (NPT) Standard: ASME B1.20.1

PRESSU RATING

CLASS 150
CLASS 300
CLASS 600
CLASS 1500
CLASS 2500

SPECIFICATION

Size range 1 / 4 “to 4”
Optional Materials
Carbon Steel: A105, LF2
Stainless Steel: F304, F304L, F316, F316L

Duplex Steel: F51, F55, F53
Alloy Steel: F1, F5, F5A, F9, F11, F22

OUR ADVANTAGES

With many years of experience in producing valves, we have a wide range of products for different purposes. This forged extended body gate valve is superior in quality and can give a long service life. In addition, you will get our best after-sales service!

Quality Assurance

IMPROVEMENTS:

Set up a trained and standardized Quality Control technician Team.
With our computer managements system to analyze the data, find out the weak link of management, improve the quality and efficiency, and reduce the waste in the process.
Through the computer system to make information transparent to customers, customers can master the order status and product related information in real time.
Advance Machines: take advanced technology and reliable equipment to ensure machining accuracy and long-term stable production capability.
