Forged Y-Strainer

You Are Here:

Forged Y-Strainer

Product Parameter Information

Category

Forged Y strainer is an indispensable filter device in the pipeline system for conveying medium.It’s usually installed at the inlet of pressure relief valves, pressure relief valves or other equipment to remove impurities in the media and protect the normal use of valves and equipment.

Share:

Product Description

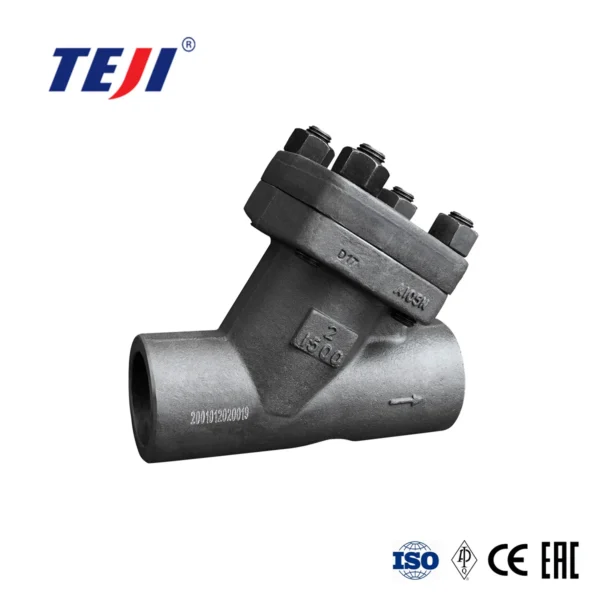

FORGED Y STRAINER
Y strainer is an indispensable filter device in the pipeline system for conveying medium.It’s usually installed at the inlet of pressure relief valves, pressure relief valves or other equipment to remove impurities in the media and protect the normal use of valves and equipment. Forged Y strainer is better than cast, it can withstand high impact and high temperature and pressure. Therefore, it is better to use forged steel strainer filtering equipment in some important machinery and equipment and complex working conditions.
FEATURE
  • Simple manufacturing
  • Easy installation and cleaning
  • Long service life
  • Various specifications of filter screen
SPECIFICATION
  • Size: 3/8”~2” , DN15-DN50
  • Pressure Rating: Class150~2500LB, PN10-PN420
  •  Main Materials: A105, F22,LF2, LF3, F304, F316, F321, etc.
  • Design and Manufacture: BS5352
  • Face-to-Face:ASME B16.10, JIS B2002
  • Ends Connection: Flange, Butt Welding, Socket Welding, Thread etc.
  • Inspection & Testing: API 598
  • Operator: Bare shaft, Manual, Worm Gear, Electric.
  • Suitable Medium: W.O.G, Steam, nitric acid, acetic acid
MAIN PART
NoNameMaterial
1BodyA105A182 F22A182 F304A182 F316A182 F304LA182 F316L
2Gasket304+graphite
3BonnetA105A276 304A182 F304A182 F316A182 F304LA182 F316L
4BoltA193 B7A193 B16A193 B8A193 B8MA193 B8A193 B8M
5NameplateSS
6NutA19 42HA19 44A19 48A19 48MA19 48A19 48M
7ScreenSS304SS304SS304SS316SS304LSS316L
8PlugA105A182 F22A182 F304A182 F316A182 F304LA182 F316L

Quality Assurance

IMPROVEMENTS:

  1. Set up a trained and standardized Quality Control technician Team.
  2. With our computer managements system to analyze the data, find out the weak link of management, improve the quality and efficiency, and reduce the waste in the process.
  3. Through the computer system to make information transparent to customers, customers can master the order status and product related information in real time.
  4. Advance Machines: take advanced technology and reliable equipment to ensure machining accuracy and long-term stable production capability.
