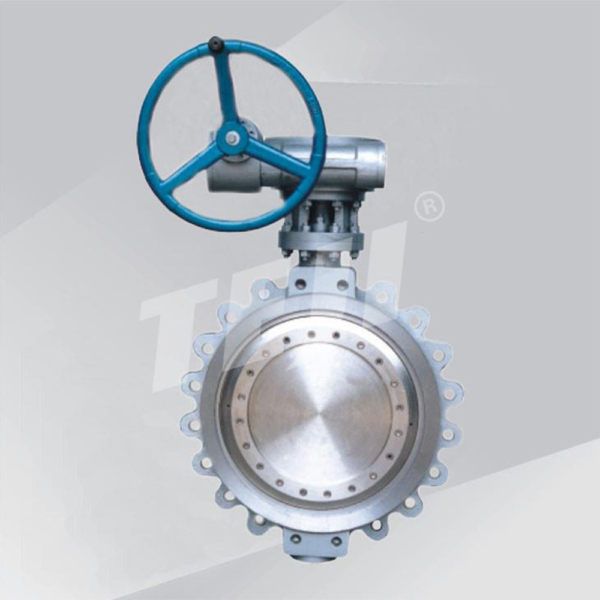

Lug Type Double Offset Butterfly Valve

You Are Here:

Lug Type Double Offset Butterfly Valve

Product Parameter Information

● Model: LTD72F/H, LTD372F/H
● Size: 2”~64”, DN50-DN1600
● Pressure Rating: ANSI 150LB, PN10~PN16
● Casting Body: ASTM A216 WCB, ASTM A351 CF8/ CF8M/ CF3/ CF3M etc.

Share:

Product Description

Fire safe double offset butterfly valve has characteristics of super unique product structure, ultra-reliable sealing performance, ultra-wide working condition, ultra-low operation torque, long service life, safe and fireproof in special working conditions. This series of high performance double eccentric butterfly valves use a variety of structural materials, including NACE compliant and abrasion resistant. It is a special valve which is used for cryogenic, steam, chlorine, oxygen, high vacuum, corrosive medium and low temperature environments.Double eccentric butterfly valve is further improved on the basis of single eccentric butterfly valve. Its structural feature is that the axis of the valve stem deviates from the center of the butterfly plate and the center of the body. The effect of double eccentricity enables the butterfly plate to quickly detach from the valve seat after the valve is opened, which greatly eliminates unnecessary excessive squeezing and scraping between the butterfly plate and the valve seat, reduces the opening resistance, reduces wear and improves Seat life. The large reduction in scratches also allows the double eccentric butterfly valve to also use metal seats, which improves the application of butterfly valves in high temperature fields.
SPECIFICATION:
  • Model: LTD72F/H, LTD372F/H
  • Size: 2”~64”, DN50-DN1600
  • Pressure Rating: ANSI 150LB, PN10~PN16
  • Casting Body: ASTM A216 WCB, ASTM A351 CF8/ CF8M/ CF3/ CF3M etc.
  • Seat Material: RPTFE, PPL
  • Suitable Temperature: -40~260℃
  • Design and Manufacture: EN593
  • Face-to-Face: EN558-1
  • Ends Connection: Wafer
  • Inspection & Testing: EN12266
  • 11Operation: Lever, Worm Gear, Electric, Pneumatic.
  • Suitable Medium: Water, Steam, Gas, Oil, Acetic Acid, Nitrose.
FEATURE:
  • Bi-directional
  • Class VI Leakage
  • Eccentric Disc and Disc
  • Seat Sealing.

Quality Assurance

IMPROVEMENTS:

  1. Set up a trained and standardized Quality Control technician Team.
  2. With our computer managements system to analyze the data, find out the weak link of management, improve the quality and efficiency, and reduce the waste in the process.
  3. Through the computer system to make information transparent to customers, customers can master the order status and product related information in real time.
  4. Advance Machines: take advanced technology and reliable equipment to ensure machining accuracy and long-term stable production capability.
quality ass
