SIZE NPS 1/2 to NPS 36
CLASS 150 to CLASS 2500

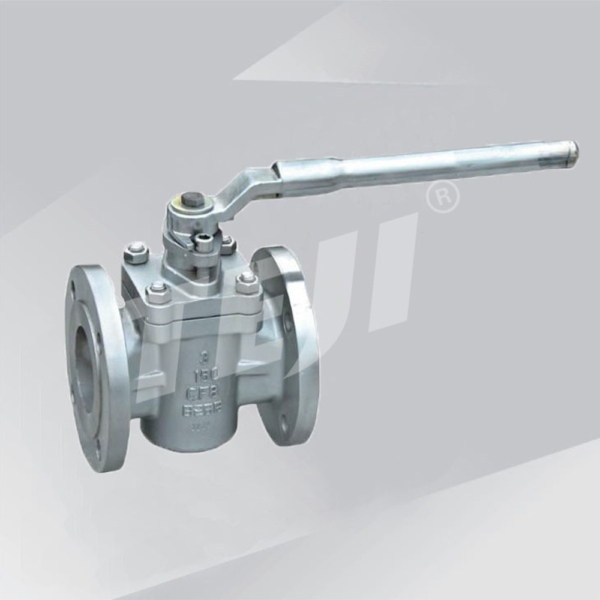

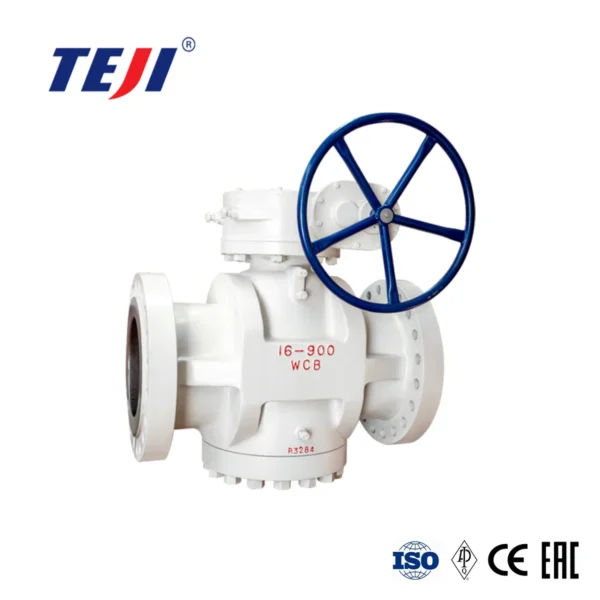

The Pressure balance lubricated plug valve is good for frequent operation as it can be open and closed quickly.
Its fluid resistance is lower.
The structure and volume is small and it is light in weight,easy to maintain.
Good sealing performance.
Not limited by the direction of installation. The flow direction of the medium can be arbitrary.
No vibration, little noise.
Full or Reduced Bore, RF, RTJ or BW
Sleeve type or Pressure Seal Balance.
Design & Manufacture acc. To API599, API6D, ISO 14313.
Face to Face acc. To API6D, ASME B16.10.
End Connection acc. to ASME B16.5(RF, RTJ), ASME B16.47(RF, RTJ), MSS SP-44(NPS 22 only) ASME B65.25(BW)
Test & Inspection according to API598, API6D.
Also available as per NACE MR-0175, NACE MR-0103, ISO 15848.
SIZE NPS 1/2 to NPS 36
CLASS 150 to CLASS 2500
Available in forging for NPS≤2 (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5), Casting for NPS≥2(A216 WCB, A351 CF3, CF8, CF3M, A995 4A, 5A, A352 LCB, LCC, LC2), Monel, Inconel, Hastelloy.
