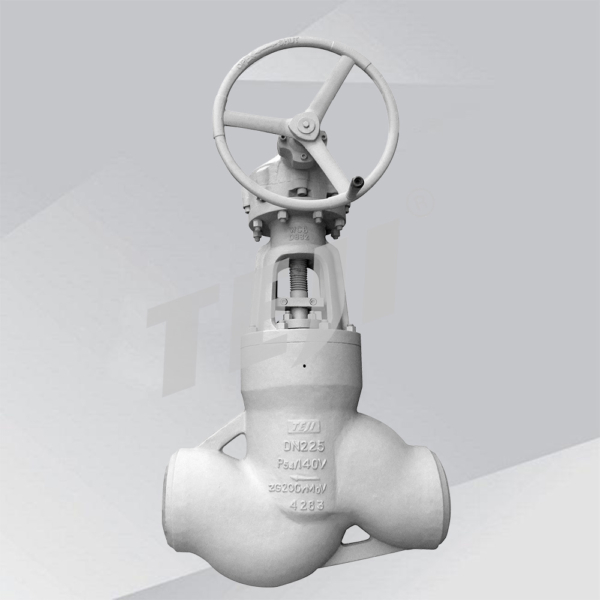

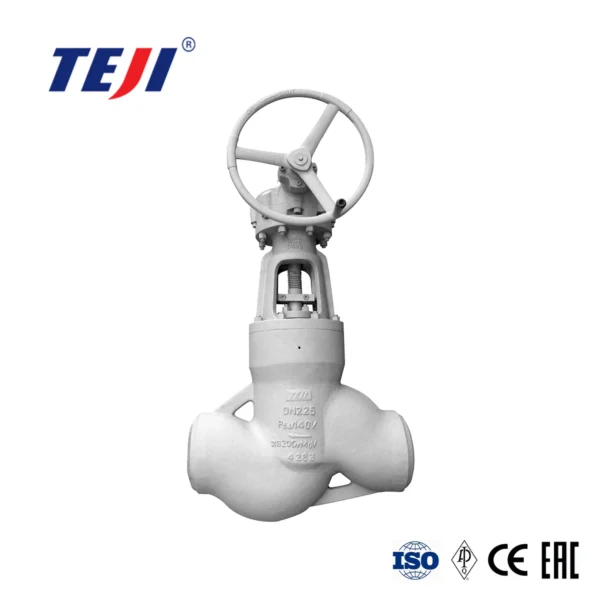

The pressure seal globe valve is designed in accordance with BS 1873 and ASME B16.34 for high pressure and high temperature service. And it is widely used in fossil fuel power plant. Compared with bolted bonnet globe valve, it has advantage of reliable sealing of the bonnet. So that the pressure seal is more compact , when the valve pressure is more high.
● Size: 2”~24”
● Pressure Rating: Class150~2500LB
● Main Materials: WCB, WC6, WCC, CF8, CF8M, 4A, LF2, F304, F316 etc.
● Design and Manufacture: BS1873, API600 ASME B16.34
● Face-to-Face: ASME B16.10, DIN3202, EN558
● Pressure-temperature Ratings: ASME B16.34
● Ends Connection: Flange, Butt Welding
● Inspection & Testing: API 598
● Operator: Handwheel, Bevel Gear, Electric, Pneumatic.
● Forged Stem
● Pressure Seal Bonnet
● Solid or Split Disc
● Renewable Seat Ring
● Flexible Disc
● Straight Pattern or Y Pattern Structure
