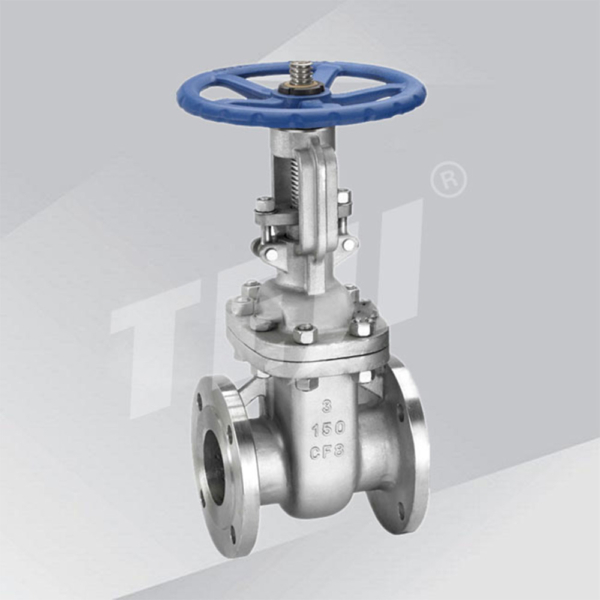

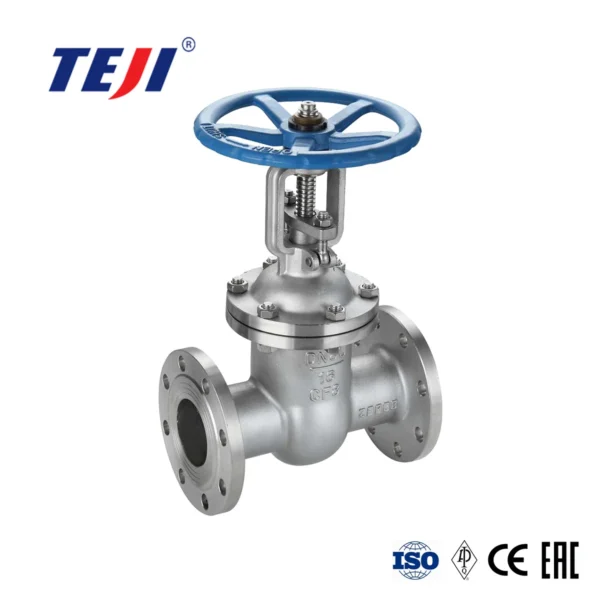

TEJI Stainless Steel Gate Valves are manufactured in size range from DN50 to DN1500 in ASME Pressure Class 150~2500, which are available in end connections as flange RTJ/RF and BW in varieties of body and trim materials like CF8,CF8M, CF3, CF3M, C5,C12, Duplex Stainless Steel.
| Design Standard | API600/API603/API6D/ASME B16.34 |
| Gate Design | Flexible Wedge, Solid Wedge, Parallel Slide Disc. |
| Seat Design | Integral Seat |
| Inspection & Testing | BS EN ISO12266-I(BS6755-I)/API598/API600 |
| Face to Face Dimension | ASME B16.10 |
| End Flange Dimension | ASME B16.5, for size ≥24”(DN600) the flange drilling shall be as per ASME B16.47 series A(MSS SP44),RTJ flanges are offered as optional for Class600 and above, BW to ANSI B16.25 |
| Valve Operator | Handwheel/Gearbox/Chain Wheel/Actuator |
| Pressure Test Standards | API 598/ISO5208 |
| Option | Locking arrangement, By-Pass, Drain Plug Design, STL seating hard facing, |
● Heavy Duty, OS&Y type.
● Bolted Bonnet, rising stem with non-rising handwheel.
● Straight Through Bore design assure min. Turbulence, erosion and resistance to flow.
● Provides the ultimate in dependable, economic flow control, available in wide range of sizes and weights.
API603 Standard Gate Valve is much more competitive in price than API600 Standard, welcome to send us email teji@teji-valve.com for details.
