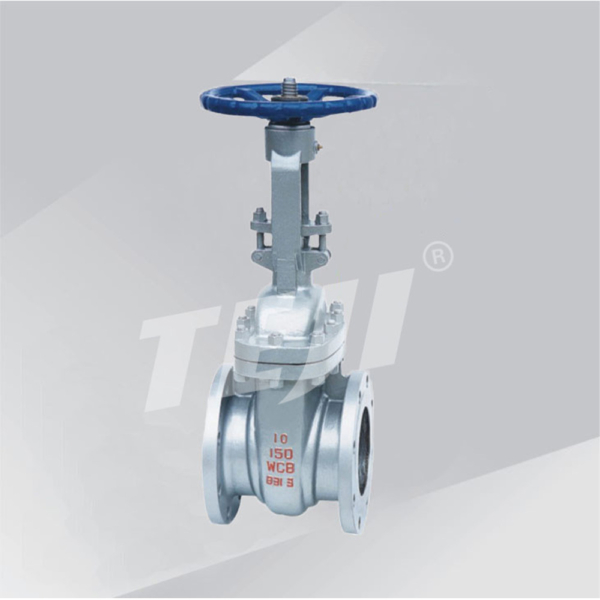

As an opening and closing device, wedge gate valve is widely used in the pipelines of petrochemical, thermal power plants and other oil products, water vapor. Generally, wedge gate valve is used in the condition where has no strict size required, but the working condition is more harsh, such as high temperature and high pressure, or the long-term sealing condition.
● Size: 2”~48”
● Pressure Rating: Class150~2500LB
● Main Materials: WCB, LCC, LCB, CF8, CF8M, CF3, CF3M,Monel, Alloy Steel, C5, C12,etc.
● Design and Manufacture: ASME B16.34, API600, API603
● Face-to-Face: ASME B16.10, DIN3202
● Ends Connection: Flange, Butt Welding, Socket Welding, Thread etc.
● Inspection & Testing: API 598
● Operator: Manual, Worm Gear, Electric, Pneumatic.
● Outside Screw and Yoke
● Renewable Seat Ring
● Flexible Disc or Solid Disc
● Rising Stem and Non-rising Handwheel
IMPROVEMENTS:
