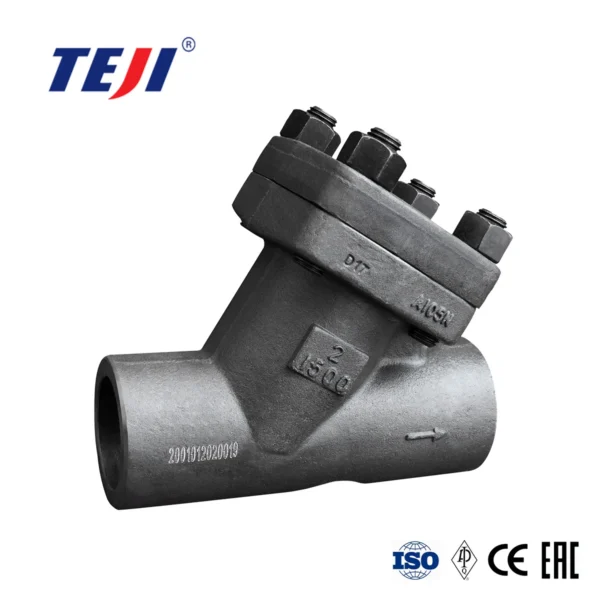

Y-Type Body Forged Check Valve

You Are Here:

Y-Type Body Forged Check Valve

Product Parameter Information

Y-type straight-through flow path, greatly reducing the flow through the resistance
Spring loaded to ensure that even in the low-pressure sealing performance when the same good

Product Description

PRODUCT INTRODUCTION

Y-type Body Forged Check Valve is an automatic safety device device installed in the integrated control pipeline to prevent medium backflow. According to the structure form can be divided into two design forms, bolted bonnet and welded bonnet. The Y-type straight-through flow path can greatly reduce the resistance of the flow.

SPECIFICATION

		A105	F22	F304(L)	F316(L)
1	Body	A105	A182 F22	A182 F304(L)	A182 F316(L)
2	Disc	A276 420	A276 304	A276 304(L)	A276 316(L)
3	Bonnet	A105	A182 F22	A182 F304(L)	A182 F316(L)
Medium		W.O.G, Steam,etc	W.O.G, Steam,etc	Nitric acid, acetic acid,etc
Temp.		—29℃～425℃	—29℃～550℃	—29℃～200℃

Size range 1 / 4 “to 2”
Optional Materials
Carbon Steel: A105, LF2
Stainless Steel: F304, F304L, F316, F316L
Duplex Steel: F51, F55, F53
Alloy Steel: F1, F5, F5A, F9, F11, F22

APPLICATION CRITERIA

Design: API 602/ASME 16.34/BS 5352
Pressure Test: API 598
Tag: MSS SP25
SW Socket welding ends according to ASME B16.11
BW butt end by ASME B16.25
NPT threaded connectors according to ASME B1.20.1

PRESSURE RATING

CLASS 800
CLASS 1500
CLASS 2500

Quality Assurance

IMPROVEMENTS:

Set up a trained and standardized Quality Control technician Team.
With our computer managements system to analyze the data, find out the weak link of management, improve the quality and efficiency, and reduce the waste in the process.
Through the computer system to make information transparent to customers, customers can master the order status and product related information in real time.
Advance Machines: take advanced technology and reliable equipment to ensure machining accuracy and long-term stable production capability.
